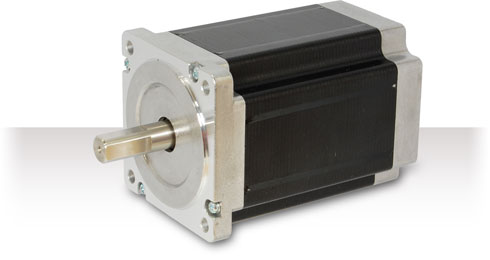

NEMA 34 Stepper Motor
The family of NEMA34 stepper motors spread over six different stator lengths.
The maximum torque exceeds 12Nm (1416oz-In) placing this series of stepper motors among the best performing commercially available.
All the motors have 8 wires and can be used both in bipolar and unipolar mode.
When the motors are used in bipolar mode (recommended to obtain the best performance) it is possible to choose between a series type connection, to limit the phase current, or parallel type, for applications exploiting the motors at high speeds.
The 14mm shaft diameter ensures stability in applications with belt transmission. Upon request the motor can be obtained with 12mm shaft with key, with double shaft, etc.
NEMA 34 Stepper Motor 86x86mm (3.39x3.39in) holding torque up to 12Nm (1416oz-in)
The maximum torque exceeds 12Nm (1416oz-In) placing this series of stepper motors among the best performing commercially available.
All the motors have 8 wires and can be used both in bipolar and unipolar mode.
When the motors are used in bipolar mode (recommended to obtain the best performance) it is possible to choose between a series type connection, to limit the phase current, or parallel type, for applications exploiting the motors at high speeds.
The 14mm shaft diameter ensures stability in applications with belt transmission. Upon request the motor can be obtained with 12mm shaft with key, with double shaft, etc.
NEMA 34 Stepper Motor 86x86mm (3.39x3.39in) holding torque up to 12Nm (1416oz-in)
