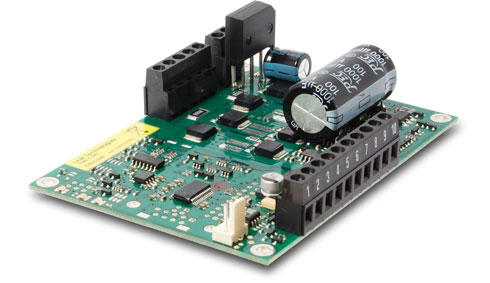

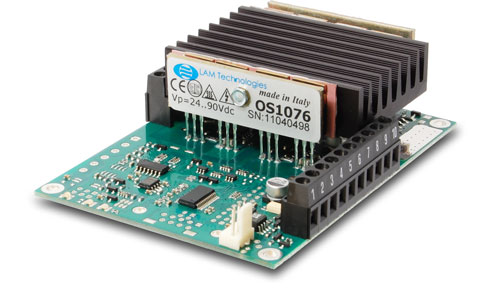

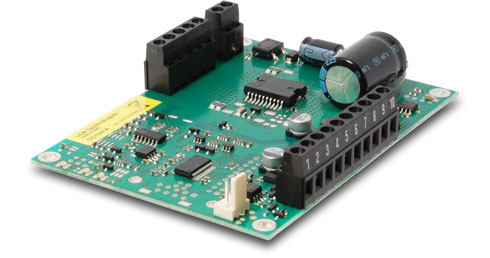

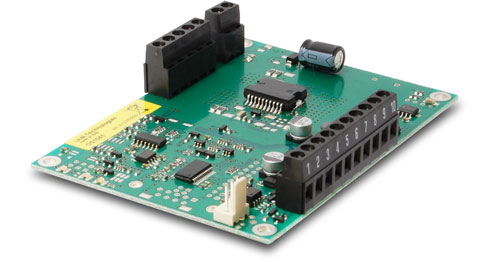

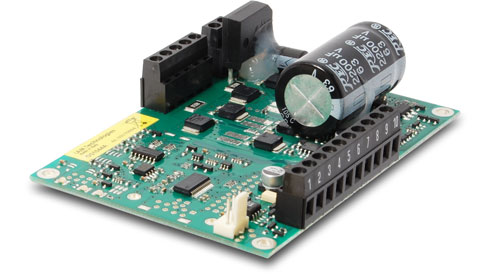

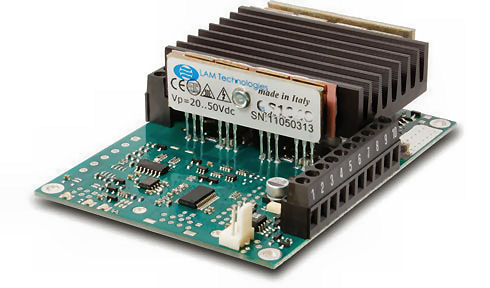

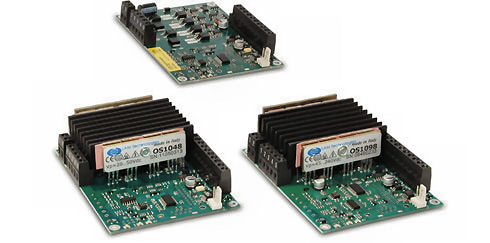

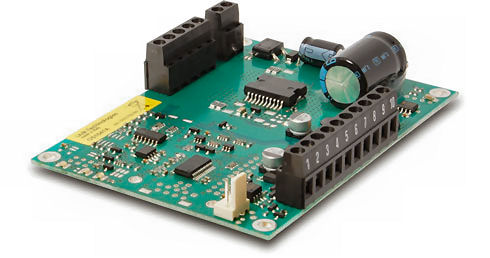

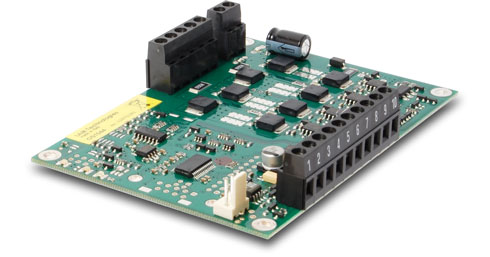

Step and Direction OS10 Series

The OS10 step motor driver series are produced in open design, with IP00 protection, and are very small sized despite the high power they can manage (they reach working voltages of 240Vdc and phase current of 10Arms, equivalent to 14Apk or 14Imax).

The 4 holes at the corners of the board allow mounting of the drive.

The connection of the signal and power cables are easily managed using the numbered screw terminals, and cables may be up to 2.5mm2 (14awg).

Maximum reliability, high performance, small footprint and low cost are the guidelines followed in the design of the stepper motor drives belonging to the xS10 series.
