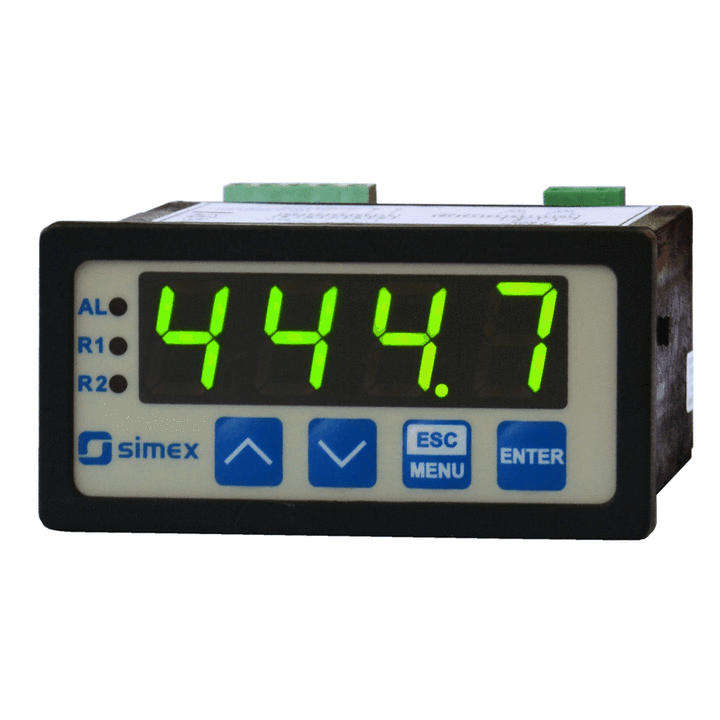

(image for) SZP-73

SZP-73

Model: SZP-73

Starting at: $243.23

Description

Regulated current source SZP-73 allows generation of user settable current (in range 4...20 mA). Increasing and decreasing of output current can be made using local keyboard. Device displays present value of output current recalculated according to set display range (-999 to 9999 with free selectable decimal point). Quick view and regulation of output current is possible at any time. The device can replace all two wire analogue current sources (4...20 mA) used for controlling of industrial processes. The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems. The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.

Specifications

Input typeno input
Output type4...20 mA
Power supply

16...35V AC, 19...50V DC

85..260V AC/DC

Display

LED, 4 x 13 mm, two-coloured

LED, 5 x 9 mm, red

Communication InterfaceRS-485 / Modbus RTU
Transmission parameters1200...115200 bit/s, 8N1 / 8N2
Operating temperature

0...+50°C

-20…+50°C

Protection class

IP 20 (case and connection clips)

IP 40 (front)

IP 65 (front)

optional integrated frame for panel cut-out sealing

Case materialNORYL-GFN2S E1
Mountingpanel
Case dimensions72 x 36 x 97 mm

For more information on the SZP-73 please click the links below:

DATASHEET

MANUAL

**To order this product please select an option from each of the categories below

  • Model: SZP-73
  • Shipping Weight: 1 lbs
  • Manufactured by: Simex
