(image for) TRS-11a

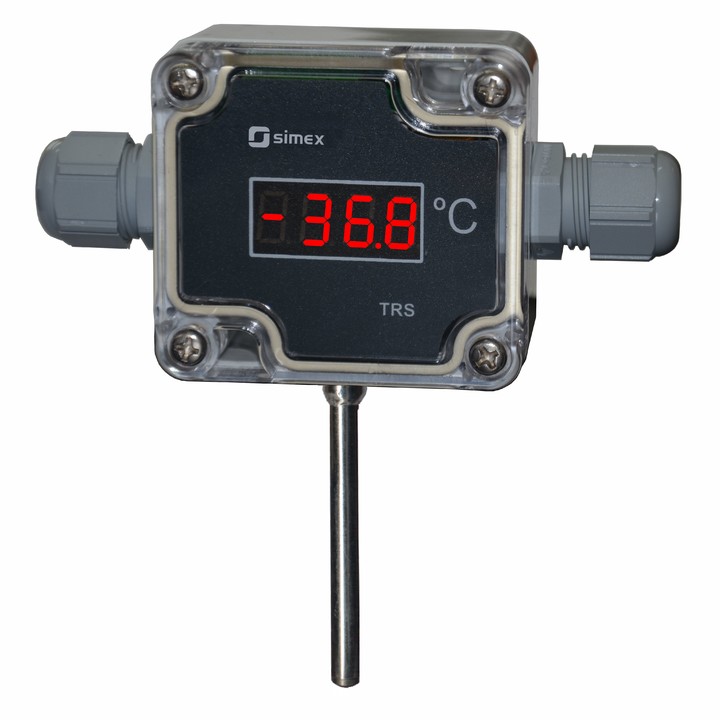

TRS-11a

Model: TRS-11a

$178.60

Description

The TRS-11a is designed for multipoint temperature measurement within the range of -40°C up to +85°C. It is particularly designed to measure temperature in rooms where food products are manufactured and stored. A display located on the front panel enables the reading of current temperature and autonomous operation of the module (without a computer system). It is equipped with RS-485 / Modus RTU communication interface.

Specifications

Number of inputs1
Input typeintegrated temperature probe (semiconductor integrated circuit)
Input rangetemperature: -40...+85°C
Output typeno output
Power supply9...12V DC
DisplayLED, 4 x 9 mm, red
Communication InterfaceRS-485 / Modbus RTU
Transmission parameters9600 bit/s, 8N1
Operating temperature-40...+85°C
Protection class

IP 30

IP 65

Case materialABS
Case dimensions64 x 58 x 35 mm

For more information on the TRS-11a please click the links below:

DATASHEET

MANUAL

**To order this product please select an option from each of the categories below

  • Model: TRS-11a
  • Shipping Weight: 1 lbs
  • Manufactured by: Simex
  • Delivery information
  • For more information, please visit this product's webpage.
